Winding Connection

1.Common winding connection are△ and Star (Y).

△ Star (Y)

2. The winding commection of three phase double voltage single speed motor: 2△/△and 2Y/Y

2Y/Y 2△/△

Outgoing terminal mark

3.The winding commection of three-phase multi-speed motor

Low speed High speed

The corresponding relationship of incoming terminal

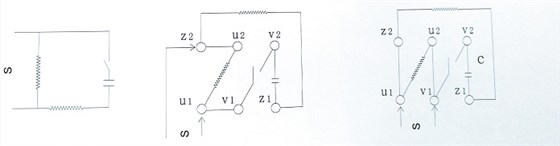

4.The winding commection of single phase motor

Clockwiserotation CW Contrarotate CCW

Single phase resistance starting asynchronous motor

Clockwiserotation CW Contrarotate CCW

Single phase capacitorstarting asynchronous motor

Clockwiserotation CW Contrarotate CCW

Single phase capacitorrotate asynchronous motor

Clockwiserotation CW Contrarotate CCW

Single phase capacitorstarting and rotate asynchronous motor
