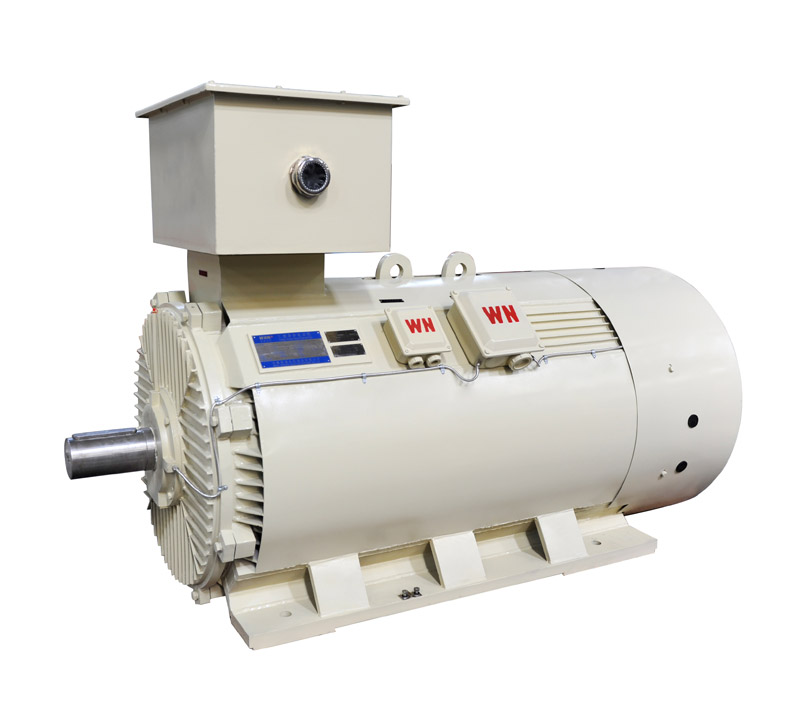

IEC Compact Frame Metric Medium Voltage

3PH TEFC 50/60 Hz IC411 IEC AC Foot Mounted Motors

Features:

1. Out Power:160-1600kW

2. IEC Frame 355-560

3. 3000/3600, 1500/1800, 1000/1200, 750/900 and 600/750 RPM

4. TEFC welded or cast iron frame

5. Extra mounting holes for added versatility

6. Multiple Voltages available up to 11kV

7. Vacuum pressure impregnation (VPI) for failsafe electrical performance

8. Class F insulation

9. Low Vibration Level < 1.8 mm/s RMS

10. Thermal winding protection 6 x RTD’s ( 2 per phase)

11. Thermal bearing protection 2 x RTD’s (1 per bearing)

12. Continuous Duty

13. -20°C up to +40°C ambient temperature

14. 1000m altitude above sea level

Applications:

Ideal for applications requiring Metric IEC high efficiency, reliability and low cost of ownership such as waste water treatment plants, cement  and chemical plants, refineries and more.
