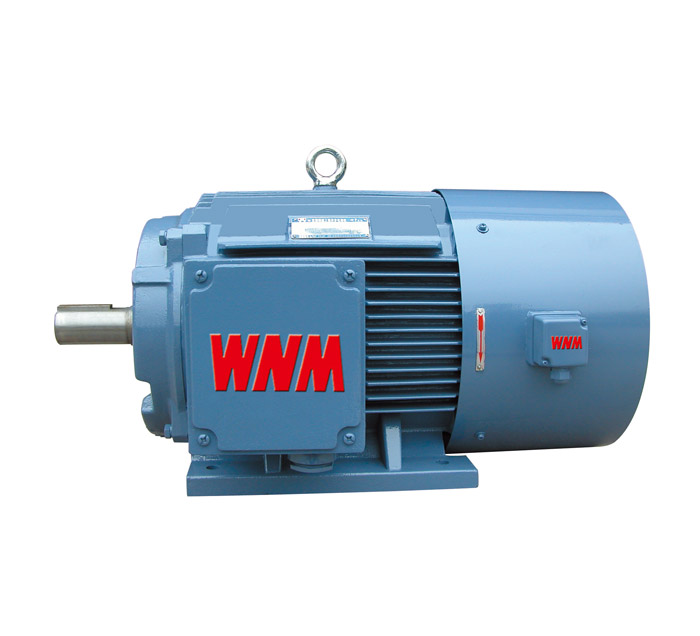

YVF2 Series Frequency Variable Speed Regulation Motors

    • * Frame sizes: 80 to 355
      * Rated output: 0.18 to 375kW
      * Insulation class: F
      * Voltage: 380V
      * Efficiency levels: IE1
      * Frequency range for 2P:
      (3) 5-100Hz (frame size 80-250)
      (3) 5-70Hz (frame size 280)
      (3) 5-60Hz (frame size 315-355)
      * Frequency range for 4, 6, 8, 10P: (3) 5-100Hz
    • Hotline:
      +86-0563-5031948
    • Fax:
      +86-0563-5028878
    • Download:





    YVF2 Series Documentation



    • Stepless adjustable speed operation in a wide range
    • Good performance of the system, energy saving
    • High-grade insulation material and special technological
    • withstand high frequency pulse impact
    • Separate fan for forced-ventilation





    Various operation systems by which speed-regulation is needed, such as metallurgy, chemistry, textile, pumps, machine tool, etc.









    Common frame size corresponding to the power:



    Frame Size 80 90 100 112 132 160 180 200 225 250 280 315 355
    Power range kW 0.18~1.1 0.37~2.2 0.75~3 1.5~4 2.2~7.5 4~18.5 11~22 15~37 18.5~45 30~55 37~90 45~220 110~375
    Poles 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8 2.4.6.8

    2.4.6.

    8.10

    2.4.6.

    8.10

     Remark: For the other special rated powers, please contact with us.







    Frame

    basic type

    derived type



    B3

    B5

    B35

    V1

    V3

    V5

    V6

    B6

    B7

    B8

    V15

    V36

    B14

    B34

    V18

    80112

    132160

    -

    -

    -

    180280

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    315355

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -

    -
